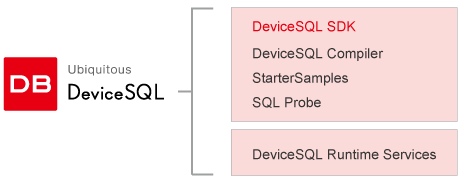

DeviceSQL consists of the DeviceSQL development environment (SDK) installed on the development host and the DeviceSQL Runtime Services (DeviceSQL Runtime Services) running on the target.
Development environment
The DeviceSQL development environment (SDK) includes the following components: The DeviceSQL Compiler is
automatically analyzes program logic and data definitions written in DeviceSQL Language (DevcieSQL Language) and generates optimized application code in ANSI C code.
The sample application (Starter Samples)
Sample programs that use various DeviceSQL functions are included.
SQL Probe is an advanced database operation tool.
Interactive database interaction is possible.
It also has an import / export function with CSV files.
Target environment (runtime)
The DeviceSQL runtime service is optimized for embedded systems.
A service library that includes a high-performance database engine.
It consists of the following services.
| Services provided by DeviceSQL | Overview | |
|---|---|---|
| Basic service | DeviceSQL memory service | Register memory allocation /free routines |
| DeviceSQL database handle service | Supports multiple DB instances, allowing multiple independent DB environments to be built within the same memory space | |
| DeviceSQL storage service | Provides Memory Mapped Storage type service | |
| DeviceSQL page service | Provides Paged Storage type service | |
| DeviceSQL index service | Provide various index services | |
| DeviceSQL Callback On Event service | DML cancellation, error handling, etc. | |
| DeviceSQL Dynamic C API service | Build dynamic DB applications only in C language or in combination with DevcieSQL language | |
| DeviceSQL Interpreted SQL | Programmable using SQL strings | |
| Extended service * | DeviceSQL Shared Access service | Share paged storage between multiple processes |
| Communication service (Data Streams API) | Provides a framework for sharing DBs with remote nodes via BSD Socket I / F | |
| DeviceSQL thread safety service | Provides exclusive control and access control of table operations | |
| DeviceSQL Spatial Search Index Service | Provides spatial search (R-Tree) function | |
| DeviceSQL full-text search index service | Provides full-text search (N-Gram) function |
* Extended services depend on the functions provided by the OS platform and may not be implemented.
